Victorian Tile Restoration: Uncovering Hidden Safety Risks

How to Recognise Movement and Loose Grout in Victorian Tile Floors: Assessing Safety Risks in Stapenhill

Noticing movement in your Victorian tile floor or loose grout joints typically indicates a deeper issue that goes beyond mere surface wear. The homeowner at this Stapenhill property expressed increasing concern about the movement affecting various sections of the entrance floor. Loose tiles, cracked joints, and uneven surfaces created a considerable trip hazard. Although this floor was part of an original Edwardian entranceway that retained much of its historic charm, years of use, attempts at repair, and ongoing movement had made it vulnerable to further deterioration.

Performing a Comprehensive Evaluation of Initial Floor Conditions

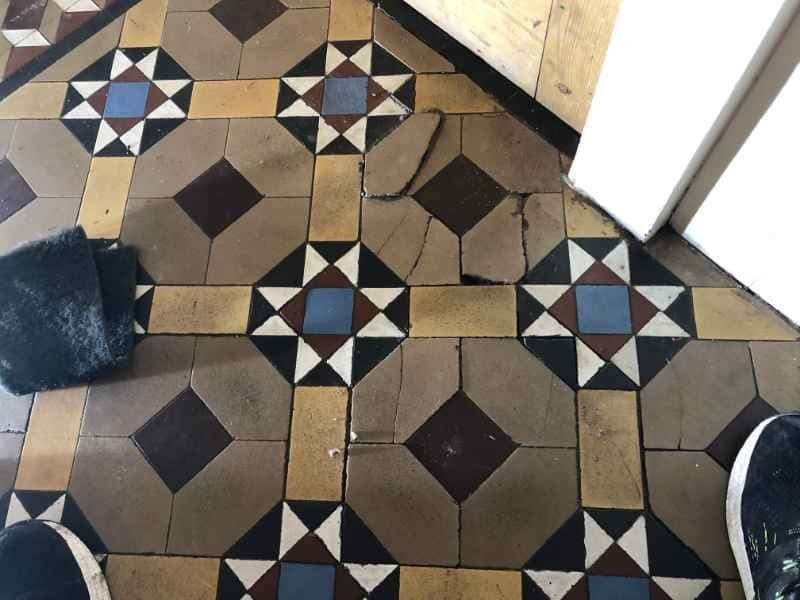

The entrance featured an impressive arrangement of Victorian geometric tiles, characteristic of properties from the era during Burton's industrial expansion. Years of foot traffic had led to visible wear in the central walkway, while the perimeter areas remained relatively stable. Several tiles shifted underfoot, and gaps formed between adjoining sections due to the inadequacy of earlier repairs. The homeowner’s primary concern was safety, especially in the entrance area, which experienced heavy daily footfall.

Loose grout was evident throughout various areas of the floor. In several locations, previous repair attempts had used harder materials that did not bond effectively with the surrounding tiles. Small fragments had broken away from the joints, leaving edges exposed to further wear. The uneven surface between neighbouring tiles created an uncomfortable sensation underfoot and gave the floor a neglected look, despite regular cleaning efforts.

The condition of the clay surface varied significantly along the hallway. Some sections retained vibrant colour and definition, while others displayed darker patches from years of grime settling into the naturally porous tile body. Historic clay floors of this type gradually absorb contaminants over time, which explains why routine washing becomes less effective as the years go by. This resulted in a floor that appeared worn and inconsistent, even though the original geometric design remained largely intact.

A closer examination showed signs of multiple previous attempts to address isolated issues rather than treating the floor as a unified whole. Various sections had been lifted and replaced at different times, resulting in subtle variations in level and alignment. Some joints contained deteriorated material that had become brittle and discoloured, while other repairs appeared significantly newer. These inconsistencies disrupted the visual harmony of the original layout.

While the entrance floor remained functional, the practical consequences of the deterioration were increasingly difficult to overlook. Tiles shifted slightly when weight was applied, grout continued to loosen, and the uneven surface complicated cleaning efforts. Dirt accumulated in open joints and around unstable areas, creating a cycle where the floor appeared progressively more worn. The homeowner understood that cosmetic cleaning alone would not resolve these issues, making it essential to assess the full extent of the underlying problems.

The original pattern of the floor was one of the property's most attractive features. Decorative borders and contrasting clay colours continued to define the layout, contributing to the entrance's period character. Despite the movement and visible deterioration, most of the historic materials remained intact, which added to the frustration. The floor seemed neglected, yet much of the original fabric still existed and was salvageable.

The project commenced with a detailed evaluation of the floor's visible condition rather than immediate repair actions. Loose sections, open joints, worn traffic routes, and areas of previous repairs were all meticulously documented. Understanding the extent of the deterioration provided clarity on the floor’s condition and established a foundation for subsequent work.

What Is the Connection Between Uneven Victorian Tiles and Failed Repairs?

Uneven tiles and open joints often suggest that previous repairs have not effectively addressed the underlying problems. In this Stapenhill hallway, the movement affected not only individual tiles but also the interconnected areas where the supporting bed had lost stability. As the support weakened, tiles began to shift independently, leading to the gradual opening of surrounding joints.

Loose tiles seldom fail in isolation; the support beneath them has changed.

The visible symptoms clarify why dirt accumulated quickly around the affected areas. Open joints trapped contaminants, while movement allowed debris to penetrate deeper into the gaps with every step. Historic clay tiles are inherently absorbent, meaning that once dirt infiltrates weakened joints, it becomes increasingly difficult to remove through standard cleaning methods. Similar issues, along with effective long-term solutions, are discussed in this guide to restoring Victorian tiles properly.

Why Is Stabilising Loose Victorian Tiles Vital Before Restoration Work?

Regularly cleaning a floor with loose tiles often postpones addressing the underlying issue and may allow ongoing deterioration to be overlooked. Once the extent of the movement had been evaluated, the planned cleaning was halted to prioritise stabilising the unstable areas. Attempting restoration before stabilisation would only leave the root problem unresolved and potentially exacerbate the situation.

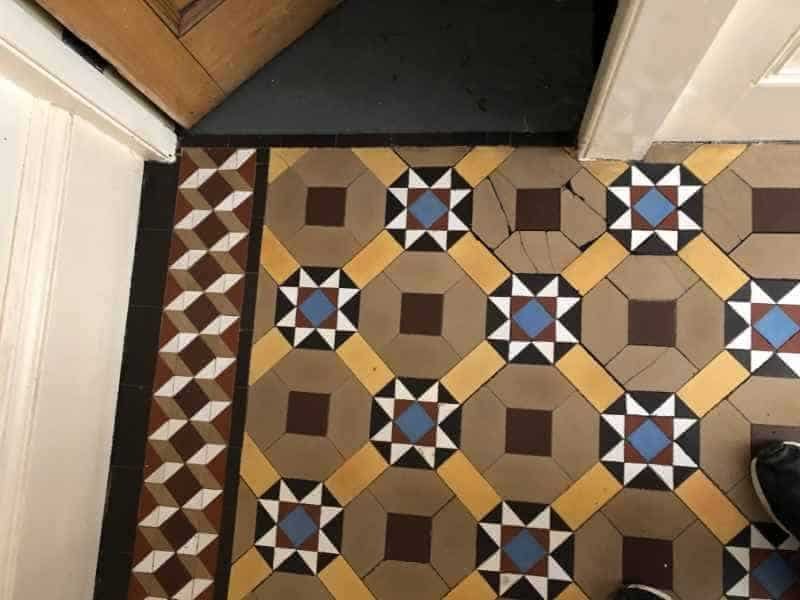

Cleaning alone would have temporarily enhanced the appearance while leaving the underlying movement unchanged. Stabilisation first allowed for the careful removal of the affected tiles, elimination of unsuitable materials, and preparation of the supporting bed before relaying the original pieces in their correct positions. Damaged joints were repaired simultaneously, restoring continuity across the entire floor.

Only after resolving the structural issues could the subsequent restoration stages proceed correctly. This method protected the original tiles, minimised the likelihood of future movement, and ensured that the cleaning and finishing work produced lasting results, rather than a temporary solution.

Transforming a Safety Hazard into a Functional Entrance: The Advantages of Stable Victorian Tiles

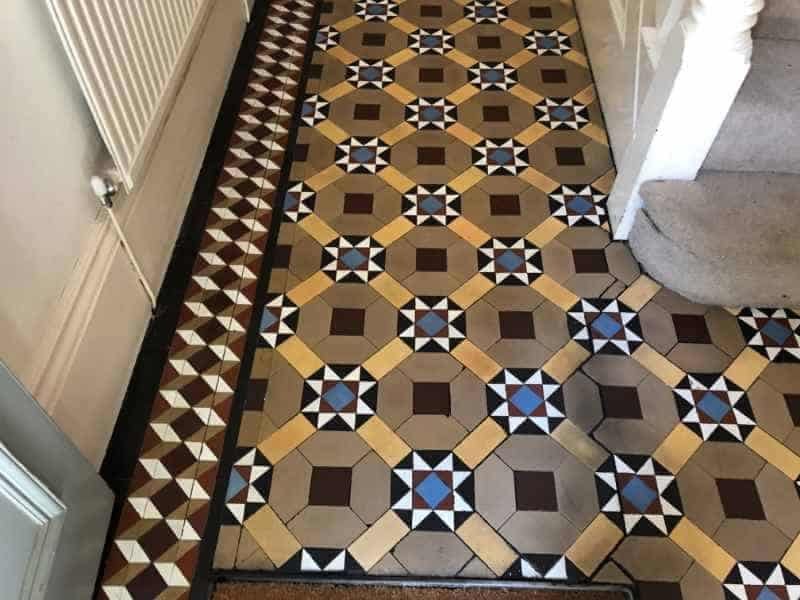

Homeowners often first notice stability improvements following a successful Victorian tile restoration project. After completing the repairs, the entrance floor no longer shifted under pressure, and the previously uneven areas felt secure underfoot. The removal of loose sections turned the hallway from a source of concern into a functional, reliable entrance once more.

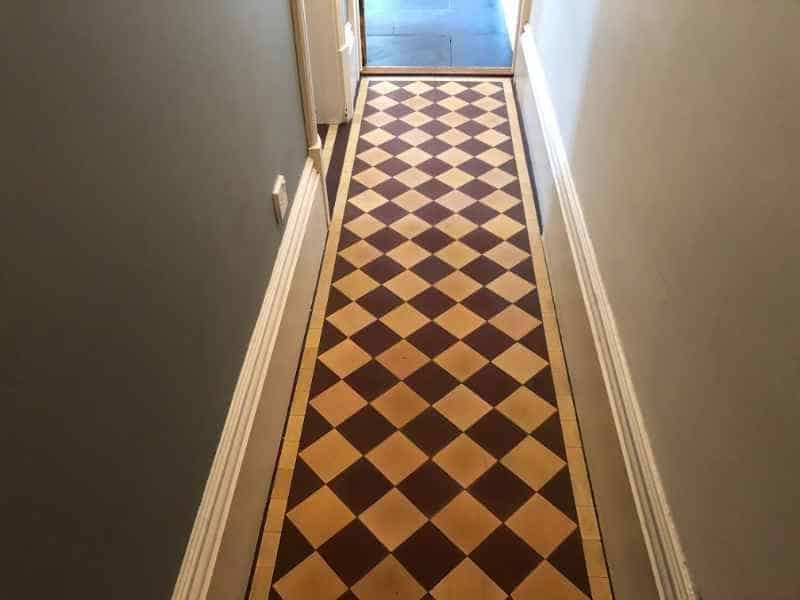

The visual enhancements were equally striking. Repaired joints resulted in a more uniform look, while thorough cleaning revealed colours and pattern details that had long been hidden beneath years of grime. A breathable protective treatment was applied to resist future staining while still allowing moisture to escape naturally through the floor structure.

A fully restored Victorian tile floor proudly displays the original fired matte surface with consistent colour and pattern. When a topical sealer is appropriate, it can add a slight protective sheen without altering the character of the period floor. The completed entrance maintained its historic aesthetic while becoming safer, cleaner, and significantly easier to maintain.

What Resources Are Available to Learn More About Restoring Victorian Tile Floors and Avoiding Past Mistakes?

Ignoring the underlying causes of tile movement often leads to recurring problems. One key lesson learned from this Stapenhill project was that visible symptoms seldom exist in isolation. Loose joints, uneven levels, and movement underfoot were all interconnected, and focusing solely on appearance would never yield a lasting solution.

This project also emphasised the importance of executing work in the correct sequence. Stabilisation was the first step, followed by cleaning, joint repairs, and protective finishing. This systematic approach preserved the original clay material while effectively addressing the homeowner’s concerns.

Readers seeking broader insights can explore the main Victorian tile cleaning resource, which examines common issues, maintenance considerations, and restoration principles for historic clay floors. Understanding the causes of deterioration remains the most effective way to prevent repeating past mistakes, helping period entrances retain their original character for many years.
