Solar Switchboard Upgrade for Chelmer’s Air Conditioning

Project Location: Chelmer
Project Scope: Enhancement of switchboard
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Choose Precision Electrical & Air for Your Switchboard Upgrade Journey

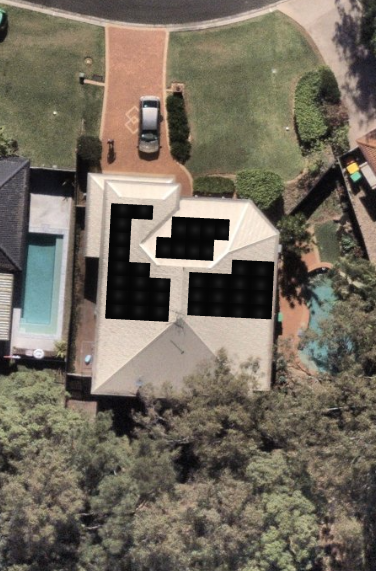

This homeowner in Chelmer undertook a significant renovation project, which involved the installation of a formidable 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage system, and comprehensive blackout protection for the entire home. Additionally, a newly designed ducted air conditioning system was integrated into the overall plan. Before linking these sophisticated systems, it was vital to assess and enhance the existing switchboard to ensure alignment with the latest standards and effectively manage the increased electrical loads introduced by these installations.

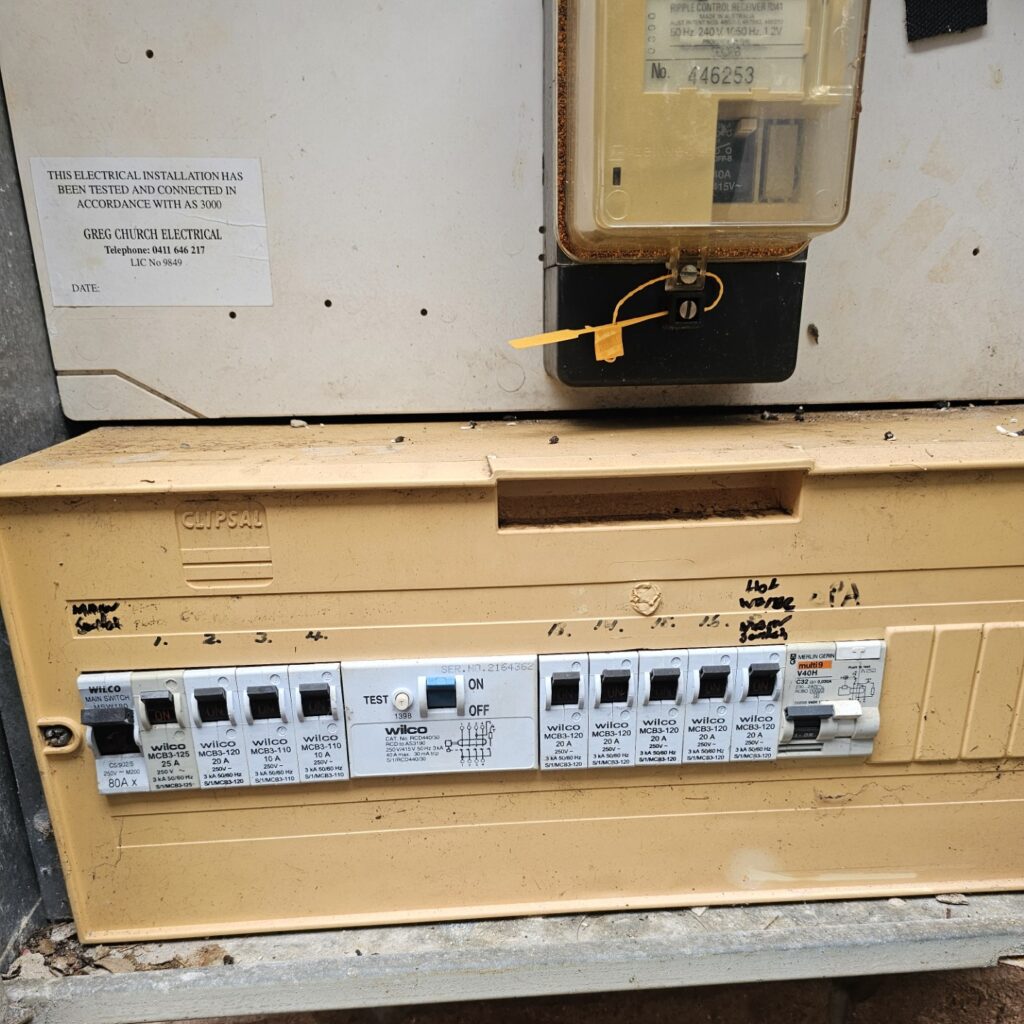

The original switchboard was outdated, featuring obsolete circuit breakers and a single Residual Current Device (RCD) that was responsible for the protection of the entire property. It lacked the capacity to support solar energy integration and battery storage. Additionally, the circuit labeling was insufficient, rendering it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance significantly jeopardised the efficient operation of the newly upgraded systems and posed safety risks.

Is a Three-Phase Upgrade Really Necessary for Your Electrical System?

When assessing the specifications of a 17.86kW solar system coupled with a 30kWh battery, there exists a common misconception that a three-phase upgrade is essential. This misunderstanding can lead to considerable financial implications for the homeowner, potentially resulting in expenses ranging from £3,500 to £6,000, in addition to a prolonged wait for network modification approvals from Energex.

In-Depth Initial Technical Assessment Completed

Two crucial factors played a significant role in determining whether a three-phase upgrade was genuinely necessary. Firstly, the supply cable for the residence was strategically positioned near the street junction. This advantageous placement allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, the solar and battery systems are specifically designed to diminish demand on the grid rather than increase it, hence, from the network's perspective, there was no technical justification for the need for a three-phase upgrade. Additionally, the ducted air conditioning system was found to comply with essential parameters for efficient single-phase operation.

As a result, the decision was made to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and competently manage all new electrical loads without compromising safety or compliance with regulatory standards.

Comprehensive Review of Installed Components for Enhanced Safety and Regulatory Compliance

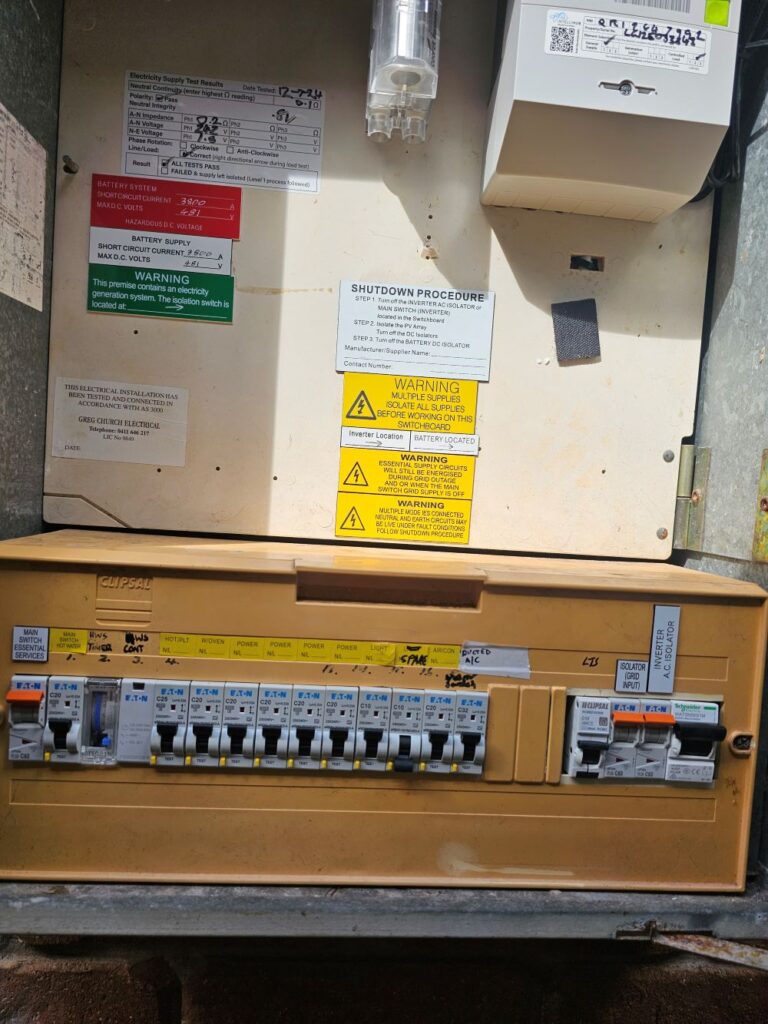

The existing switchboard underwent a thorough dismantling and reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, and each breaker was meticulously labelled for easy identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was incorporated into the hot water service to guarantee efficient operation during peak solar generation hours. This strategic enhancement significantly reduces dependence on the grid by optimising the utilization of the solar system’s output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were thoroughly conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring that it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Reaps Rewards from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their particular circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in specific scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a comprehensive analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling occurs; you will receive an accurate evaluation tailored to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment hinges on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex allows a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration suffices. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can function legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, leading to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce stringent limits, typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance remains within this limit to determine whether single-phase or three-phase power is suitable for your property.
