Flat Metal Roof Leaking Issues Explained Simply

Identifying and Solving Common Flat Roof Challenges for Homes on the Central Coast

Although flat roofs may not be the most common choice in the Australian roofing market, their appeal is steadily increasing among both residential and commercial properties. These roofing systems are particularly favoured for patios, carports, walkways, and locations where a low-pitch roofing solution is essential. When the slope is very slight, flat roofs may also be referred to as “skillion roofs.”

Flat roofs offer various benefits, yet they come with distinct challenges that homeowners must be aware of. Gaining an understanding of the common issues associated with flat roofing systems and implementing preventative strategies is crucial, especially in the Central Coast, where the coastal climate, heavy rainfall, and salty air can exacerbate roofing complications.

What Factors Are Driving the Increasing Popularity of Flat Roofs Among Homeowners?

Flat roofs are gaining traction in both residential and commercial constructions for several compelling reasons, including:

• They are quicker and simpler to install, resulting in faster project completion times.
• They provide easier maintenance access, facilitating routine inspections and repairs.
• They serve as excellent platforms for solar panel installations, promoting energy efficiency.

The most significant concern with flat roofs revolves around water drainage. Water is the primary adversary of your roof. When planning a new roof installation or updating an existing one, it is essential to consider various factors, particularly rainfall, which can vary greatly across different regions of Australia.

What Are the Major Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow off swiftly into gutters, flat roofs feature a limited slope, which can lead to water pooling that persists for extended periods. If water is not efficiently directed off the roof, it may lead to:

• Surface staining and deterioration of roofing materials.
• Structural weakening of roofing components over time.
• Accumulation of mould and mildew, which poses health risks.
• Leaks that may penetrate the interior of the building.

The solution to these challenges lies in effective roof plumbing and thoughtful design that addresses the unique issues presented by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Performance

Prior to installation, a professional roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevailing weather patterns.
• Total roof area and precise dimensions.
• Gutter arrangements and effective drainage outlets.
• Specifications for downpipe dimensions.
• Overflow prevention measures to manage excess water.
• Considerations regarding roof pitch to improve drainage.

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with a slope below this threshold can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are unsuitable for very low-pitch applications. For flat roofs, specialised roofing profiles engineered for effective water shedding are highly recommended to ensure long-term performance.

Exploring the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Solutions

Among the most highly recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This adaptable profile suits both roofing and wall applications. Its 28mm rib height and uniquely designed capillary groove enhance watertightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the correct roofing profile based on your roof pitch and local rainfall patterns is vital for ensuring the long-lasting performance and reliability of your roofing system.

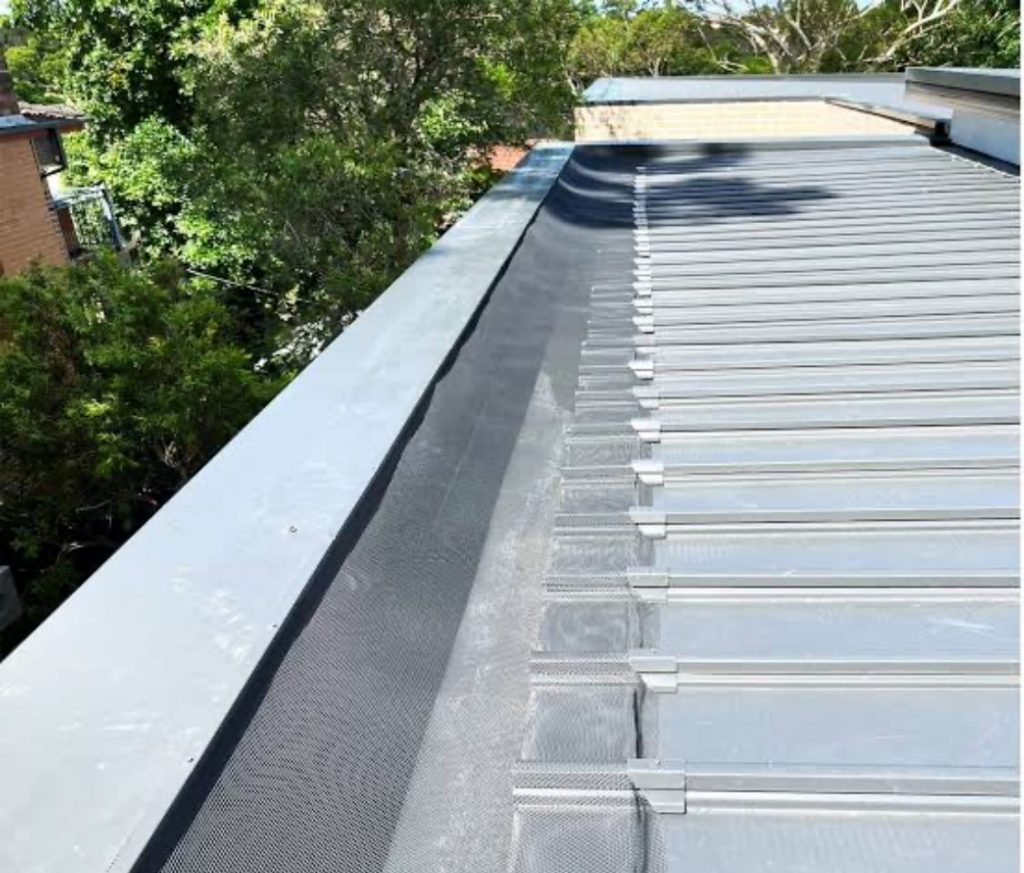

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

On flat roofs, Box gutters are often used to connect roof panels to drainage outlets. Given that box gutters are situated below the roof plane, they require meticulous detailing and installation to prevent blockages and issues related to water back-up.

Common challenges associated with box gutters include:

• Debris accumulation from surrounding trees and foliage.
• Improper fall or slope that hinders efficient water flow.
• Overflowing back into the roof structure, leading to leaks.
• Blocked downpipes that hinder effective drainage.

Addressing these challenges begins with proper gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Key Factors Should You Consider When Selecting Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow requirements of flat roofs. It is often necessary to install guttering designed specifically for larger water capacities. Next, we will explore various drainage and overflow solutions that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during intense rainfall.
• Effectively sweep away debris with high flow capabilities.
• Provide easier cleaning and maintenance options for homeowners.

Our top recommendation for gutters is self-cleaning designs, which are perfect for flat metal roofs while also offering an aesthetically pleasing appearance!

We prefer a half-round gutter due to its superior water-carrying capacity, enabling more rapid drainage. This design effectively sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to adequately sized downpipes (for instance, 100mm × 75mm) that can manage substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are crucial components installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water can accumulate around these joints if they are not effectively sealed.

To reliably prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles.
• Waterproof sealants should be applied at all joints to ensure tight seals.
• Extra care is necessary at corners and seams where water may collect.

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes special care during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those linked to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure unobstructed drainage.
• Checking downpipes for any signs of potential blockages.
• Inspecting roof surfaces for small cracks or areas where water may accumulate.
• Re-sealing flashings as necessary to uphold waterproof integrity.

Conducting regular maintenance checks can prevent the need for extensive repair work in the future, thereby prolonging the life of your roofing system.

Discover the Numerous Advantages of Properly Installed Flat Roofs

When designed and installed by experienced metal roofing professionals, flat roofs can provide:

• A contemporary, sleek architectural aesthetic that boosts property value.
• Optimised space for patios, decks, or utility services, maximising utility.
• Convenient access for maintenance or solar panel installation, making upkeep easier.

Furthermore, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed effectively, improving both the functionality and appearance of the building.

How to Ensure You Secure the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can provide both functionality and enduring durability in the coastal environment. Whether you are initiating a new construction project, extending a patio, or adding a carport, selecting the correct roofing system and drainage design is essential for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the perfect time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Than Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may accumulate or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be equally resilient as pitched roofs.

What Is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure effective drainage.

Is It Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters located below the roof line, often situated between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to facilitate effective water drainage. Half-round gutters and 100x75mm downpipes are frequently used to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as needed will significantly extend the roof's lifespan and performance.
